Water TReatment Solutions
PFAS REMOVAL
Hybrid Technology & The Best-Targeted Solutions
Water TReatment Solutions
PFAS REMOVAL
Hybrid Technology & The Best-Targeted Solutions
FYVE STAR, Inc and ITAC Water Technologies provide process, industrial and municipal clients innovative solutions for water and wastewater filter systems. Conserve, optimize and clean your water with our innovative systems.
Our patented technologies, Filter Magic®, Zero2Waste®, traditional gravity filter systems and ultrafiltration ceramic flat-plate membrane systems are easily designed, built, and installed in your water or wastewater treatment plant.
You can choose from a variety of filtration systems offered by FYVE STAR, Inc and ITAC:
30,000+ Industrial & Military Sites have been identified as using Toxic PFAS.
The US Centers for Disease Control (CDC) claims that forever chemicals can be found in the blood of almost 97% of Americans. As of January 2024, water utilities must filter out five of more than 12,000 types of signatures of forever chemicals. These synthetic chemicals have been used to help products repel water and oil for decades. Still, they also linger in the environment and now in the human body causing a variety of health problems including cancer, thyroid disease, reproductive problems, and heart damage.

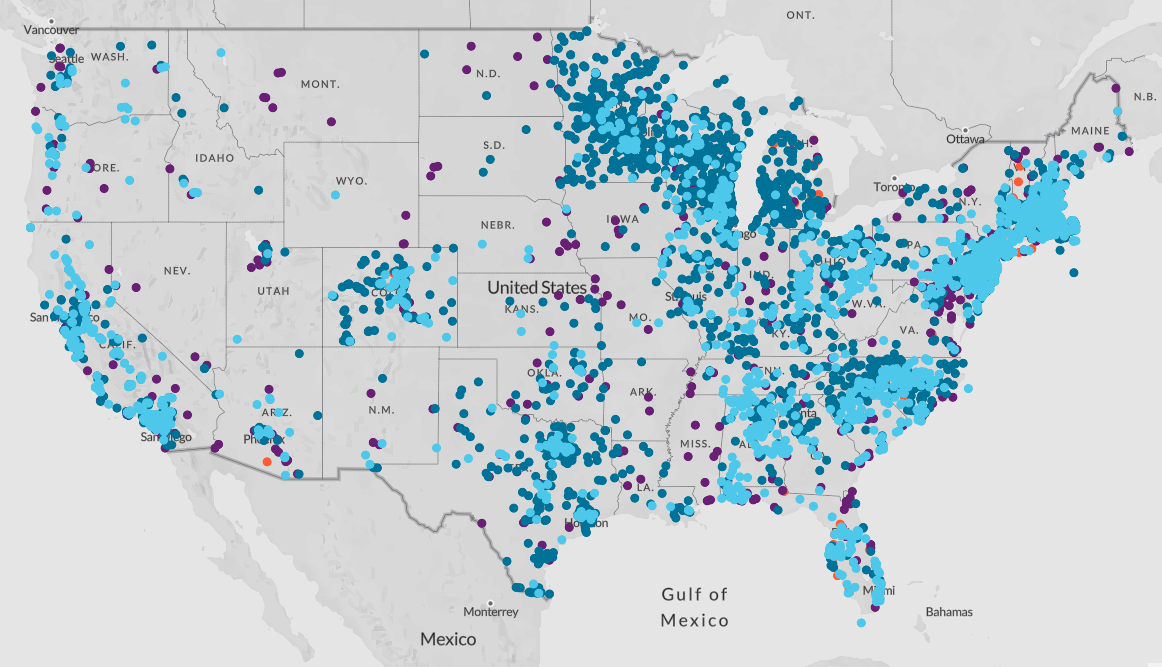

PFAS Contamination in the U.S. (February 5, 2024)
Application Challenges we Solve
SEAWATER
RO desalting process requires a reliable and durable pretreatment filtration with maximal removal of suspended solids turbidity, algae, bacteria, dissolved organics, and TEP
GROUNDWATER
Typically contaminated with heavy metals such as Fe and Mn which limits the use of conventional sand filters. In special cases contaminated with radioactive isotopes. Deep groundwater with temps above 50C limits the use of conventional polymeric filtration solutions
SURFACE WATER
Contamination from sewage discharge leads to increased organic and heavy metal contaminations, suspended solids, turbidity, algae bacteria, and dissolved organics. In some cases, contaminated with arsenic
INDUSTRIAL WATER
Water with high concentrations of oil and mining drainage contaminated with heavy metals and carcinogenic toxins
MUNICIPAL SEWAGE
Conventional sewage treatment plants are very often unable to match regulations for direct environmental discharge. Focus on the reuse of treated sewage effluent as a new water source for either irrigation and landscaping or pre-treatment for RO uses
INDUSTRIAL SEWAGE
Limited capability for biological treatment requires additional process steps for direct discharge to the environment
THE BEST SOLUTION
• For the removal of
- Iron/manganese/mercury and other heavy metals
- Iron/manganese/mercury and other heavy metals
- PFAS, PFOA, PFOS, AFF
- Taste, Odor, Color, PFAS, Radionuclides, TOC’s
- Suspended solids, metal oxides
- Organics COD
- Microbiological matters, bacteria
- Carcinogenic toxins, radioactive isotopes
- Hydrocarbons
- Trace contaminants, pharmaceutical toxins, DOM, VOC, microplastics
- Oily water (industrial, produced water, refineries)
- Hot water (NSF61 approved up to 60° C/140 oF) NSF 419
- Intermittent operation – Clean & Store DRY
- Challenging feed water: peak events, high turbidity or suspended solids, algae, etc.
- Ozone directly into the filtration tank
Ceramic membrane ultrafiltration
CERAFILTEC is a patented flat-plate ceramic membrane technology developed in Germany with substantial success throughout Europe and the Middle East.
CERAFILTEC ultrafiltration membranes can remove almost anything from water including heavy metals, copper & PFAS. Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. The pores in the membrane are typically in the range of 0.05 to 0.1 micrometers in size for the Alumina plates. These are NSF419 approved. The Silicon carbides are .3 to .5 micrometers.
CLEAN WATER EVERYWHERE
· Minimal footprint
· Easy to assemble.
· Each module can produce up to 24 GPM depending on its flux flow rate.
· Modules can be stacked in towers and arrays to achieve maximum flow rates in small areas.
· Packaged membrane systems in shipping containers or skids
· Portable, affordable, and ready to ship anywhere potable water is needed.
THE PFAS Problem
Industrial manufacturing facilities and military bases have used these chemicals for decades in multiple everyday products used or consumed by the public. Waste from these plants or bases is redirected to wastewater treatment plants and in some cases directly into the ground and ultimately into our drinking water supply. CERAFILTEC’s patented Active Cake Layer Filtration (ACFL) is uniquely qualified to remove PFAS from drinking water
CERAFILTEC
CLEAN WATER EVERYWHERE
COMPLETE removal of all suspended solids as an ultrafiltration.
SELECTIVE removal of dissolved organics and ions with the rejection results equivalent to nanofiltration or reverse osmosis performances using its proprietary Active Cake Layer Filtration (ACLF) process.
Technology Classification
The solution: Active Cake Filtration
This low-pressure, low-cost, easily maintained solution can be retrofitted to existing drinking water and waste water treatment plants. It is a cost-effective and efficient solution to PFAS problems.
Case Study: Toxic Pesticide Slurry
OUR TEAM WAS REQUIRED TO WEAR HAZMAT SUITS DURING THE PROCESS
- The plant uses a treatment process involving carbon pressure which they run six times before dumping the effluent to their local Municipal Wastewater Treatment plant.
- The effluent is never in compliance, and the plant is fined regularly.
- Our process successfully removed 3,000 parts per billion of various pesticide compounds and turned the toxic slurry into potable water in one single pass.
Case Study: Drinking water 143,000 m³/d (38 MGD)
Removal of Iron, Manganese, TSS, Radioactive Isotopes
Case Study: Removal Taste, Color, Odor, TOC/COD/BOD
IDEAL FOR DRINKING WATER AND TERTIARY TREATMENT
- PAC dosing on demand
- PAC directly into the filtration tank
- No PAC dosing limits
- No extra GAC or other post-treatment required
- Ultra-filtration + ideal activated carbon treatment in one step.
Case Study: >99% REmoval of PFAS (Short & Long Chain)
4-Month ContinuoUs Flow (7GPM) Demo with PFAS PEAKING AT 1,400 PPT
Sewage/Tertiary 100,000 m³/d (26 MGD)
Replacement of Polymeric UF Membranes For Water Reuse
PILOT OPTIONS
Several pilot options. First recommended is the suitcase, then a side stream treatment for 30, 60 to 90 days
depending on drinking water or industrial wastewater Ameri-skid or the full 20 ft container top left.
CONVENTIONAL RETROFIT
INCREASED EFFICIENCY BUT NO INCREASED FOOTPRINT
CONVENTIONAL RETROFIT
Replacement of Polymeric UF Membranes For Water Reuse
Tank-in-tank options
SAND FILTER REHABILITATION (DRINKING & TERTIARY)
UPGRADE TO 2X-4X CAPACITY + IMPROVE WATER QUALITY
Modular CERAFILTEC modules
fitting into any existing tanks
or tank-in-tank design for fast
installation and offsite assembly
SCALABILITY
RETROFIT ALMOST ANY TANK
POLYMERIC MEMBRANE REPLACEMENT
Zeeweed 1000* - Replacement No Modifications
CERAMIC VS POLYMERIC
CERAMIC VS POLYMERIC - TECHNOLOGY ADVANTAGES
- Treat any challenging water issues (high TSS/turbidity, oil, heat, algae bloom, peak events) without extended pre-treatment.
- Active Cake Layer Filtration guarantees the removal of additional dissolved compounds.
- Fastest cleaning option
- Higher recovery rate
- Less waste discharge
- No performance decay (no fiber breakages) guaranteeing consistent water quality
- Discontinuous operation option. The system can be started/stopped/dry-stored at any time.
- Treat any challenging water issues (high TSS/turbidity, oil, heat, algae bloom, peak events) without extended pre-treatment.
- Active Cake Layer Filtration guarantees the removal of additional dissolved compounds.
- Fastest cleaning option
- Higher recovery rate
- Less waste discharge
- No performance decay (no fiber breakages) guaranteeing consistent water quality
- Discontinuous operation option. The system can be started/stopped/dry-stored at any time.
CERAMIC VS POLYMERIC - ECONOMIC ADVANTAGES
- Low TCO: Long lifetime, very low power consumption.
- Simplified pre-treatment
- High performance = less wear and tear of supporting equipment and reverse osmosis.
